Sports

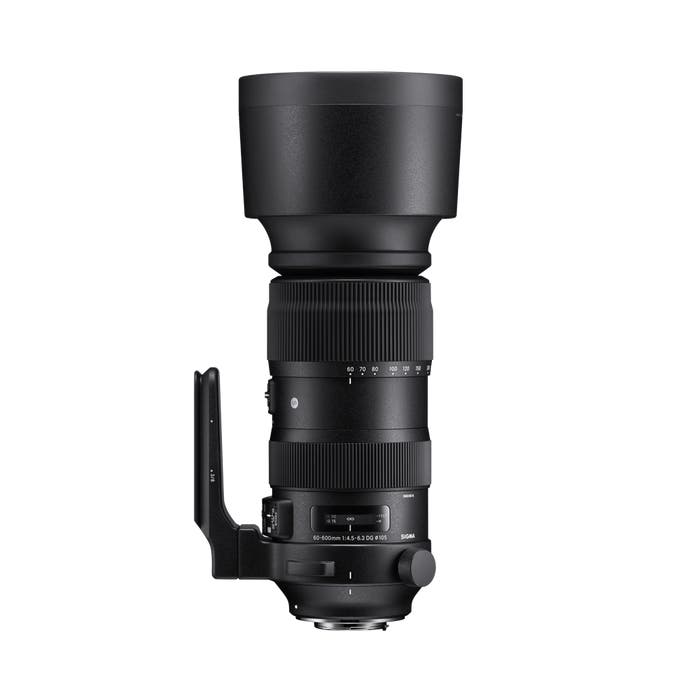

SIGMA 60-600mm F4.5-6.3
DG OS HSM | Sports

• Integratie van meerdere materialen om zowel draagbaarheid als duurzaamheid te bereiken
• 's Werelds eerste telelens met 10x optische zoom en een telelens van 600 mm
• Stof- en spatwaterdichte structuur met de water- en olieafstotende coating op de frontlens
• Statiefaansluiting met hoge bruikbaarheid, 90° klikstops en verwisselbare lensvoet
• Manual Override (MO) die twee fulltime handmatige modi kan schakelen
• Nikon elektromagnetisch diafragmamechanisme inbegrepen

Buy from reseller

Specifications

Eigenschappen

Construction

Technology

Productlijn		Sports
Youtube Videos
Instagram Widget
Lensconstructie		25 Elements in 19 Groups
Lens Type		Telephoto
Sensor Size		Full Frame
Beeldhoek		39.6º - 4.1º
Aantal diafragmalamellen		9 (Rounded Diaphragm)
Minimaal diafragma		F22-F32
Minimale scherpstelafstand		60 cm - 260 cm
Maximale vergroting		1:3.3
Afmetingen (diameter x lengte)
Gewicht (gram)		2700 g
Filtermaat		105mm
Edition number		S018
Accessoires		Lens hood (LH1144-01) supplied. Tripod socket TS-101 supplied.
EAN-code		Canon EF Nikon F Sigma SA 085126730543 085126730550 085126730567

High optical quality meeting the most stringent needs of professional photographers

This lens incorporates three FLD (“F” Low Dispersion) glass elements and one SLD (Special Low Dispersion) glass element to provide excellent correction of magnification chromatic aberration encountered in hyper-telephoto shooting. This offers both high resolution and consistent edge to edge performance through the entire zoom range. In addition, when shooting at the focal length of 200mm, the Sigma 60–600mm F4.5-6.3 DG OS HSM | Sports can also be used for telephoto macro photography, with a maximum magnification ratio of 1:3.3, thanks to its high rendering performance.

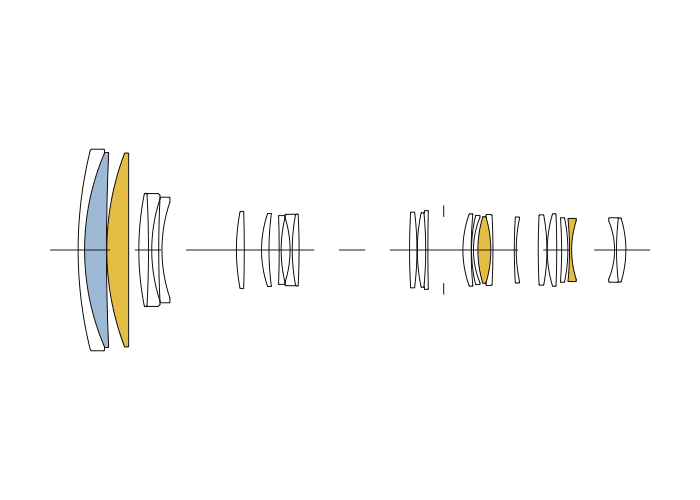

Lens construction / Specifications

Incorporating multi-material to achieve both portability and durability

To achieve comfortable handling required for a 10x zoom lens while maintaining high optical quality, the Sigma 60-600mm F4.5-6.3 DG OS HSM | Sports incorporates multi-material, such as magnesium, CFRP*, and (*)TSC (Thermally Stable Composite) . The use of these superior materials in the right place reduces the weight of the overall lens to enhance portability and ensure durability.

* Carbon fiber reinforced plastic, a light but strong material used in the interior and exterior fittings of aircraft, among many other applications.

TSC (Thermally Stable Composite) is a type of polycarbonate with a thermal expansion rate similar to that of aluminum. It has high affinity to metal parts which contributes to high quality product manufacturing.

water- and oil-repellent coating

The front lens element incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.

Without Coating

With Coating

Dust and Splash Resistant Structure*

This lens features a highly effective dust and splash resistant structure* with special sealing at the mount connection, manual focus ring, zoom ring, and cover connection, allowing photographers to work in all types of weather.

* Although this construction allows the lens to be used in light rain, it is not the same as being waterproof.

Intelligent OS

This lens incorporates Intelligent OS adopting the latest algorithm to deliver an image stabilization effect of 4 stops.

High-speed AF

The HSM (Hyper Sonic Motor) ensures high speed and quiet AF.

Multi-material

Push/pull zoom mechanism

Zoom lock switch

Tripod socket

Tripod socket with high usability
– With 90° click stops
– Replaceable lens foot
– Compatible with Arca Swiss type clamps

Tele Converters

Tele Converters that are designed to match the current lens lineup (optional) can be attached.

* The addition of Sigma’s TELE CONVERTER TC-1401 or TELE CONVERTER TC-2001 produces an AF 84-840mm F6.3-9 hyper-telephoto zoom lens or a MF 120-1200mm F9-13 hyper-telephoto zoom lens respectively.

* When it is attached to cameras that are compatible with AF at F8, focus accuracy is not ensured on the telephoto side at the focal length scale more than 300mm.

Learn More

Manual override (MO)

Manual override (MO) capable of switching two full-time manual modes

* By setting it to the MO position, it switches to manual focus by rotating the focus ring even during continuous AF. Using the optional Sigma USB DOCK, it is possible to adjust the MO position’s sensitivity to switch to manual focus.

Customization

By connecting the lens to a computer with the Sigma USB DOCK, photographers can update the lens firmware and adjust the following settings. Exclusive Sigma Optimization Pro software makes customization easy.

1.Updating Lens Firmware2.Focus Setting
3.Full-time MF Setting
4.AF Speed Adjustment
5.Focus Limiter Adjustment
6.OS Setting

Learn More

SIGMA 600mm hyper-telephoto zoom lens lineup accommodates diverse shooting styles

The arrival of the 60-600mm F4.5-6.3 DG OS HSM | Sports expands the lineup of SIGMA’s 600mm zooms to three lenses. The SIGMA 60-600mm F4.5-6.3 DG OS HSM | Sports is “versatile”, focusing on high image quality and mobility, demonstrating superior coverage from a standard focal length to a hyper-telephoto range without switching to another lens. The 150-600mm F5-6.3 DG OS HSM | Sports is composed of many metal parts aiming at a “robust” structure. The lineup of these two Sports line lenses that can meet the most stringent needs of professionals, together with the Contemporary line’s “lightweight” 150-600mm F5-6.3 DG OS HSM | Contemporary, which reduces weight and makes the shooting experience even more comfortable and convenient, SIGMA undoubtedly satisfies the diverse shooting styles of photographers.

Sports
150-600mm F5-6.3 DG OS HSM

Contemporary
150-600mm F5-6.3 DG OS HSM

Ease-of-use specifications

Instead of conventional ABS plastic, the exclusive lens hood features CFRP (carbon fiber reinforced plastic), a light but strong material used in the interior and exterior fittings of aircraft, among many other applications. The Arca-Swiss tripod socket is compatible with Arca-Swiss platforms and clamps.

Exclusive lens hood featuring CFRP

Tripod Socket

Designed to minimize flare and ghosting

From an early stage in the lens design process, flare and ghosting have been measured to establish an optical design resistant to strong incident light sources such as backlighting. Sigma’s Super Multi-Layer Coating reduces flare and ghosting to help photographers produce sharp and high contrast images even in backlit conditions.

High-precision, rugged brass bayonet mount

The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens.

Nikon electromagnetic diaphragm mechanism included

The Nikon mount version of this lens includes an electromagnetic diaphragm mechanism that allows it to receive the appropriate signals from the camera body. This feature ensures precision diaphragm control and stable Auto Exposure (AE) performance during continuous shooting.

(*)Nikon F mount camera compatibility

Lenses for Nikon F mount with an electromagnetic diaphragm mechanism can be used with the following cameras.

Z7Ⅱ※,Z7※,Z6Ⅱ※,Z6※,Z5※,Z50※,D6, D5, D4S, Df, D850, D810, D810A, D780, D750, D610, D500, D7500, D7200, D7100, D5600, D5500, D5300, D5200, D5100, D5000, D3500, D3400, D3300, D3200, D3100

※Can be used with the Nikon "Mount Adapter FTZ" attached

Before using with one of the cameras listed below, please update the lens to the latest firmware version.
D4, D3X, D3S, D3, D800, D800E, D700, D600, D300S, D300, D7000

* The lens cannot be used with the cameras not listed above (including film single‐lens reflex cameras).

High-precision, rugged brass bayonet mount

The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens.

Compatible with Canon Lens Aberration Correction

The Canon mount version of this lens is compatible with the Canon Lens Aberration Correction function*. Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.

* Function not available on all Canon cameras. Available corrections may vary depending on the Canon camera model.

(*)Canon camera compatibility

The SGV interchangeable lens for Canon EF mount supports the "lens optical correction" installed in the following cameras.

Canon camera compatibility

EOS R5※, EOS R6※, EOS R※, EOS RP※, EOS Ra※, EOS-1D X Mark III,EOS 1DX mark Ⅱ, EOS 5Ds, EOS 5DsR, EOS 5D mark Ⅳ, EOS 6D mark Ⅱ, EOS 90D, EOS 80D, EOS 8000D（EOS Rebel T6s, EOS 760D）, EOS 9000D（EOS 77D）, EOS Kiss X8i（EOS Rebel T6i, EOS 750D）, EOS Kiss X9i（EOS Rebel T7i, EOS 800D）, EOS Kiss X9（EOS Rebel SL2, EOS 200D）, EOS Kiss X10i, EOS Kiss X10

※ For SGV interchangeable lenses released before 2017* , it is necessary that the lens firmware is updated to Ver.2.00 or later.
* The release year can be confirmed by the edition number (A017, C015, etc.) engraved on the lens barrel.

※After setting the Digital Lens Optimizer to [OFF], set the "Peripheral Illumination Correction", "Chromatic Aberration Correction", and "Distortion Correction" of the "Lens Aberration Correction" function to [ON] to achieve the appropriate corrections in accordance with the optical characteristics of each lens.

Dust and Splash Resistant Structure

This lens features a highly effective dust and splash resistant structure with special sealing at the mount connection, manual focus ring, zoom ring, and cover connection.

*Although this construction allows the lens to be used in light rain, it is not the same as being waterproof, so please prevent large amounts of water from splashing on the lens. It is often impractical to repair the internal mechanism, lens elements and electric components if they are damaged by water.

Nikon electromagnetic diaphragm mechanism

High-precision, rugged brass bayonet mount

The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens.

Water and oil repellent coating

Incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.

Zoom lock switch (Can be set at any indexed focal length)

This zoom lock switch enables the zoom ring to be locked at any indexed focal length. It can be fixed at the photographer's desired focal length, which allows stable shooting even when the lens is positioned upward or downward. This feature is also useful during long-exposure photography.

Dual Action Zoom

"Dual action zoom" supports both straight zoom and ring zoom.

HSM (Hyper Sonic Motor)

The Hyper Sonic Motor (HSM) is an original SIGMA development that uses ultrasonic waves to drive the autofocus mechanism. Its extremely quiet operation helps avoid disturbing photographic subjects. High torque and speed assure rapid autofocus response. SIGMA uses two types of HSM: ring HSM and micro HSM. The Ring HSM configuration permits manual fine tuning of focus (manual override) by turning the focusing ring after autofocus is complete.

Rounded diaphragm

The polygonal shape of a conventional iris dia phragm causes out-of-focus light points to appear polygonal. A rounded diaphragm is designed to pro duce rounded out-of-focus light points when opened to near maximum aperture. This creates attractive bokeh effects in many situations, such as when pho tographing a subject against an out-of-focus surface of water from which light is being reflected.

Intelligent OS

Intelligent OS is an algorithm specially designed for panning shots. It enables effective image stabilization even when the camera is moved vertically or diagonally, regardless of the horizontal and vertical orientation. This feature is available on all of SIGMA's telephoto lenses that have OS switches 1 and 2, with the exception of the SIGMA 120-300mm F2.8 DG OS HSM | Sports.

Exclusive low-dispersion glass

The degree to which light is refracted by glass depends on the light's wavelength. This fact causes different colors of light to focus at slightly different points. The result is chromatic aberration, the color fringing that is particularly noticeable in telephoto lenses. Most chromatic aberration can be removed by combining a high-refractivity convex lens element with a low-refractivity concave element. Yet residual chromatic aberration known as "secondary spectrum" may still remain. To minimize this secondary spectrum, which can be a serious issue with conventional lenses, SIGMA lenses feature up to three types of exclusive low-dispersion glass offering superior performance: ELD (Extraordinary Low Dispersion), SLD (Special Low Dispersion) and FLD ("F" Low Dispersion). In particular, FLD glass offers ultra-low dispersion in combination with high transmittance and the anomalous dispersion characteristics of fluorite. Meticulous deployment of these types of exclusive low-dispersion glass and optimization of power distribution gives SIGMA lenses superlative image rendition undiminished by residual chromatic aberration.
