SIGMA 60-600mm F4.5-6.3
DG DN OS | Sports

€2 399

SIGMA 60-600mm F4.5-6.3 DG DN OS | Sports

Choose a mount to see availability

• 's Werelds eerste telelens met 10x optische zoom en een telelens van 600 mm
• Integratie van meerdere materialen om zowel draagbaarheid als duurzaamheid te bereiken
• Stabiele en hoge optische prestaties over het gehele zoombereik
• Supersnelle AF dankzij de nieuw ontwikkelde motor "HLA" om het beslissende moment vast te leggen
• Nieuw ontwikkeld algoritme voor optische stabilisatie "OS2" met een hoog compensatievermogen van
tot 7 haltes
• Stof- en spatbestendige structuur voor veiligheid in verschillende opnamesituaties
• Structuur van meerdere materialen voor lichtgewicht en sterke robuustheid

Buy from reseller

Specifications

Eigenschappen

Construction

Technology

Productlijn		Sports
Lensconstructie		27 elements in 19 groups, with 2 FLD and 3 SLD elements
Lens Type		Telephoto
Sensor Size		Full Frame
Beeldhoek		39.6-4.1°
Aantal diafragmalamellen		9 (rounded diaphragm)
Minimaal diafragma		F22-32
Minimale scherpstelafstand		45-260cm
Maximale vergroting		1:2.4 (at 200mm focal length)
Afmetingen (diameter x lengte)		L-mount: φ119.4mm x 279.2mm E-mount: φ119.4mm × 281.2mm
Gewicht (gram)		2495

The one and only 60-600mm zoom lens, able to handle every situation from standard to ultra-telephoto all by itself

The Sigma 60-600mm F4.5-6.3 DG DN OS | Sports is an ultra-telephoto 10x zoom lens for full-frame mirrorless cameras that covers a zoom range of 60-600mm, a range only available from Sigma. It enables users to seamlessly capture scenes from close-ups to long distance shots without changing lenses, even in difficult situations such as air shows or professional sports events.

Stable and high optical performance throughout the entire zoom range

Sigma employed the latest optical design to effectively correct chromatic aberrations that tend to occur in the ultra-telephoto range using a variety of high quality materials, including FLD and SLD glass elements. The lens is capable of capturing every moment with uncompromising high image quality in the unique focal length range of 60-600mm.
The minimum focusing distance is 45cm at the wide end, and at the focal length of 200mm, the lens offers a maximum magnification ratio of 1:2.4, allowing users to also enjoy the lens as a telephoto macro lens, adding to its overall versatility.

Dual Action Zoom for intuitive framing

The lens supports Dual Action Zoom, allowing users to use both rotary zooming by rotating the zoom ring and straight zooming by grasping the tip of the lens. This enables both precise and quick operation in any given situation.

High-speed AF owing to newly developed motor “HLA” to capture the decisive moment

The autofocus of the Sigma 60-600mm F4.5-6.3 DG DN OS | Sports makes use of the newly developed linear motor “HLA (High-response Linear Actuator)”. This high-output linear motor and advanced electronic control realize a quiet autofocus with unparalleled high speed and high precision. The new motor also enables high focus-following performance, ensuring that the decisive moment is not missed in sports photography and any other situation where the subjects are in motion, from motor vehicles to birds in flight.

Newly developed optical stabilizer algorithm “OS2” with high compensation capability of up to 7 stops

The OS (Optical Stabilizer) function employs Sigma’s newly developed algorithm “OS2”. The new algorithm significantly improves image stabilization performance, with 7 stops at the wide end and 6 stops at the telephoto end. ^*This allows the lens to capture powerful and dynamic moments with a rich sense of motion.
The lens is equipped with two OS modes: Mode 1 is suitable for general shooting, while Mode 2 is best suited for fast panning shots, such as those in motorsports and other dynamic situations. In Mode 2, Sigma’s Intelligent OS, an algorithm specially designed for panning shots, enables effective image stabilization even when the camera is moved vertically or diagonally, irrespective of the horizontal and vertical orientation. This ensures that the subject’s movement can be captured without losing the panning shot effect.

* Based on CIPA guidelines (measured in 60mm and 600mm with a 35mm full-size image sensor)

Multi-material structure for lightweight and strong robustness

The lens features a multi-material structure, in which materials such as magnesium, CFRP*1, and TSC*2 are optimally arranged according to their characteristics. As a result, the lens barrel is lighter in weight while retaining the same robustness as previous models, thereby providing high versatility in a variety of scenes and applications.

*1 Carbon Fiber Reinforced Plastic, a light but strong material used in the interior and exterior fittings of aircraft, among many other applications.
*2 Thermally Stable Composite, a polycarbonate with a thermal expansion rate similar to that of aluminum. Its high affinity to metal parts contributes to high manufacturing quality standards.

Dust and Splash Resistant Structure for security in various shooting situations

The mount connection, manual focus ring, zoom ring, switches, switch panel and exterior connection are all dust and splash resistant* to prevent dust and dirt from entering the lens. Further, the front element of the lens features a water and oil repellent coating to facilitate maintenance when water droplets or dust adhere to the lens.

* The structure is designed to be dust and splash resistant, but not waterproof. Be careful not to bring the lens in contact with a large amount of water. Water inside the lens may cause major damage and even render the lens unrepairable.

High customizability and build quality of Sigma’s Sports line

The Sigma 60-600mm F4.5-6.3 DG DN OS | Sports is equipped with substantial features of Sigma’s Sports line standard of high-mobility, high-performance lenses. Manufactured in Sigma’s sole production base in Aizu, Japan, the lens features an exceptional build quality that combines robustness with practicality and a high level of precision in every single detail.

Customizable functions

Equipped with a Focus Limiter switch, the lens enables users to limit the focus driving range during AF when necessary, allowing quick and precise focusing.
Further, the lens features three AFL buttons* ready to be assigned to preferred functions using the camera. The AFL buttons are easy to operate regardless of how the camera is oriented or which settings are used.
For the L-Mount version, the Sigma USB DOCK UD-11 can be used to set OS operation or focus limiter range for the Custom Mode switch.

* Only on compatible cameras. Available functions may vary depending on the camera used.

Interchangeable Tripod Socket

The lens body incorporates an Arca Swiss compatible magnesium alloy tripod socket. The leg can be removed and replaced with other interchangeable tripod sockets (sold separately) or attached to a monopod, allowing for a multitude of different uses and situations.

Tele Converter for L-Mount (1.4x / 2.0x)

The L-Mount version of the lens is compatible with the Sigma TELE CONVERTER TC-1411 (1.4x) and TC-2011 (2.0x). Using a tele converter, the focal length can be multiplied by 1.4x and even 2x, for AF-enabled shooting at ultra-telephoto focal lengths of up to 1200mm.

OS (Optical Stabilizer) function

SIGMA's original OS (Optical Stabilizer) function uses sensors inside the lens to detect any motion, then moves specific lens elements in order to effectively minimize blur caused by such movement. Owing to the stabilized image in the viewfinder, it is possible to fine-tune composition and ensure accurate focusing.

Inner focus system

To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.

HLA (High-response Linear Actuator)

HLA is SIGMA's proprietary linear motor. It drives the focus lens directly without going through gears or other mechanical parts, resulting in quiet, high-precision autofocusing.

Compatible with Lens Aberration Correction

Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.

*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with 'ON' or 'OFF' in the camera menu, please set all aberration correction functions to 'ON'(AUTO).

Super Multi-Layer Coating

SIGMA's own Super Multi-Layer Coating suppresses flare and ghosting by preventing reflections with in the lens. All lenses in the current SIGMA range feature this original technology. In digital cameras, flare and ghosting may also be caused by reflections between the image sensor and lens surfaces. Here too, SIGMA's Super Multi-Layer Coating is highly ef fective, assuring images of outstanding contrast.

Water and oil repellent coating

Incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.

AFL button

the AFL button can be assigned with various functions widens the range of operations available on the lens.

Focus Limiter

Offers customization for the driving range of auto focus. It makes it possible to limit the drive range from a specific distance to a long distance or a short distance.

Focus Mode Switch

Using this swich, it is possible to switch the focus mode between AF and MF.

Zoom lock switch (Can be set at any indexed focal length)

This zoom lock switch enables the zoom ring to be locked at any indexed focal length. It can be fixed at the photographer's desired focal length, which allows stable shooting even when the lens is positioned upward or downward. This feature is also useful during long-exposure photography.

Dust and Splash Resistant Structure

This lens features a highly effective dust and splash resistant structure with special sealing at the mount connection, manual focus ring, zoom ring, and cover connection.

*Although this construction allows the lens to be used in light rain, it is not the same as being waterproof, so please prevent large amounts of water from splashing on the lens. It is often impractical to repair the internal mechanism, lens elements and electric components if they are damaged by water.

Lens construction: 27 elements in 19 groups (2 FLD and 3 SLD)

Compatible with high-speed autofocus

Support for DMF, AF + MF

Compatible with AF assist (Sony E-mount only)

OS switch

Custom Mode switch

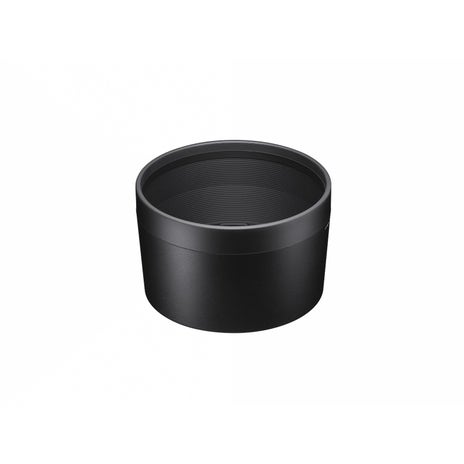

Hood (LH1144-02)

Tripod Socket TS-121 (replaceable lens foot type)

Compatible with SIGMA TELE CONVERTER TC-1411 / TC-2011 (sold separately / for L-Mount only)

Compatible with SIGMA USB DOCK UD-11 (sold separately / for L-Mount only)

Designed to minimize flare and ghosting

Every single lens undergoes SIGMA’s proprietary MTF measuring system
