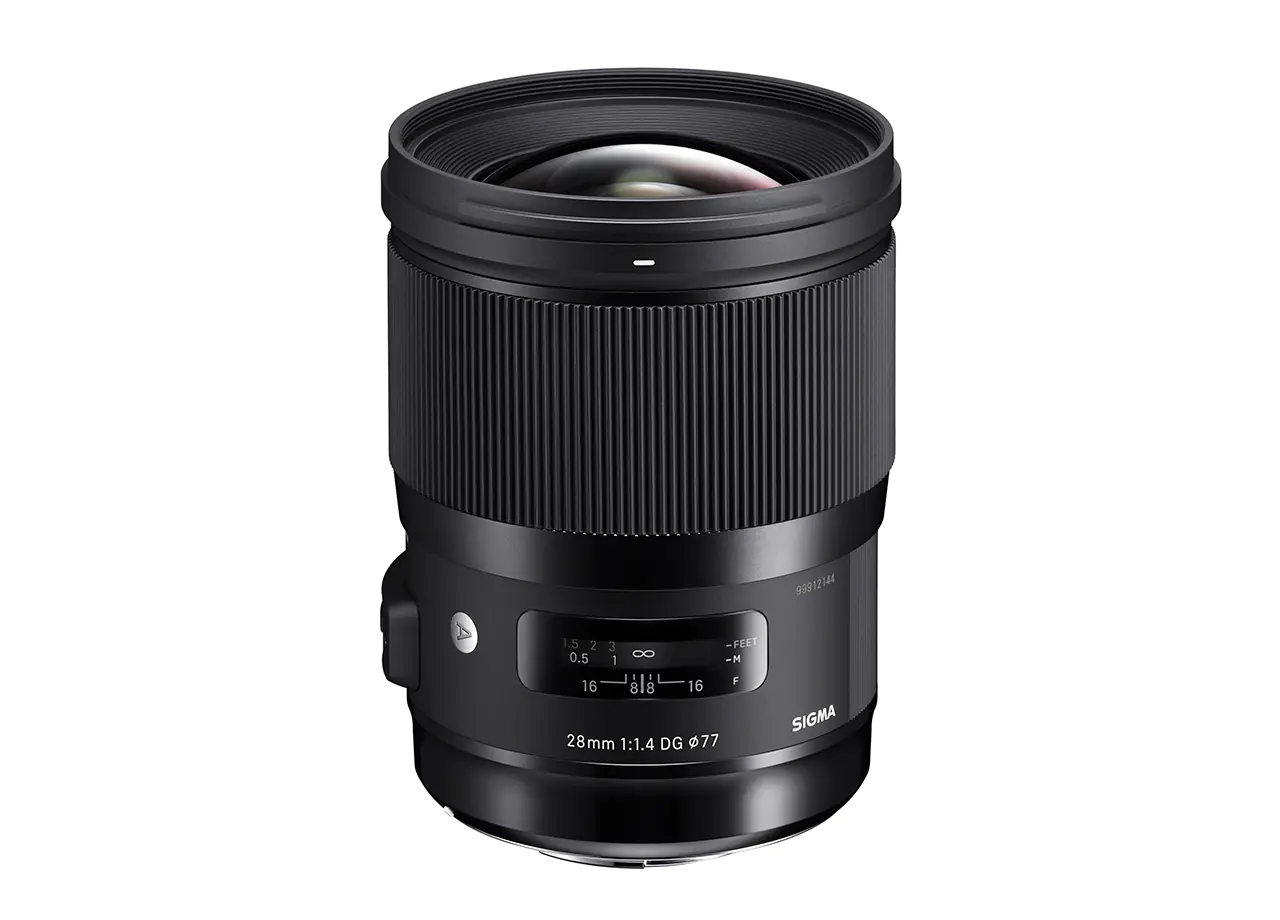

SIGMA 28mm F1.4
DG HSM | Art

€749

Choose a mount to see availability

• Best-in-class prestaties
• Stof- en spatwaterdichte structuur
• Ontworpen om flare en ghosting te minimaliseren
• Ontworpen om aan alle opnameomstandigheden te voldoen
• Compatibel met Canon-lensafwijkingscorrectie
• Nikon elektromagnetisch diafragmamechanisme inbegrepen
• Manual Override (MO) met twee modi

Buy from reseller

Specifications

Eigenschappen

Construction

Technology

Productlijn		Art
Youtube Videos
Instagram Widget
Lensconstructie		17 Elements in 12 Groups
Lens Type		Wide Angle
Sensor Size		Full Frame
Beeldhoek		75.4°
Aantal diafragmalamellen		9 (Rounded Diaphragm)
Minimaal diafragma		F16
Minimale scherpstelafstand		28 cm
Maximale vergroting		1:5.4
Afmetingen (diameter x lengte)		Sigma SA-mount Sony E-mount L-Mount ⌀ 82.8 mm x 107.7 mm ⌀ 82.8 mm x 133.7 mm ⌀ 82.8 mm x 131.7 mm
Filtermaat		77mm
Edition number		A019
Accessoires		Case, Petal Type Hood with lock（LH828-01)
EAN-code		Canon E/EF L-Mount Nikon F Sigma SA Sony FE 085126441548 085126441692 085126441555 085126441562 085126441654

Best-in-class performance

This lens incorporates two FLD (“F” Low Dispersion) glass elements and three SLD (Special Low Dispersion) glass elements. In addition, it effectively arranges three aspherical lenses, including a large-diameter aspherical lens to provide thorough correction of magnification chromatic aberration —encountered particularly in wide-angle lenses. This offers high resolution over the entire sensor, while sagittal coma flare is thoroughly corrected and distortion is also minimized to the fullest. Excellent performance is delivered in street photography, as well as shooting landscapes and night skies.

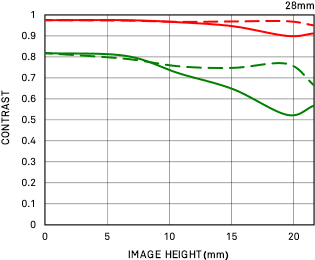

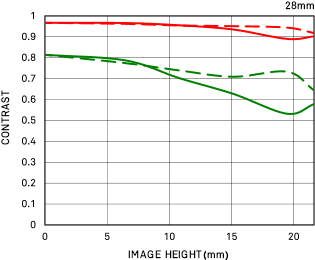

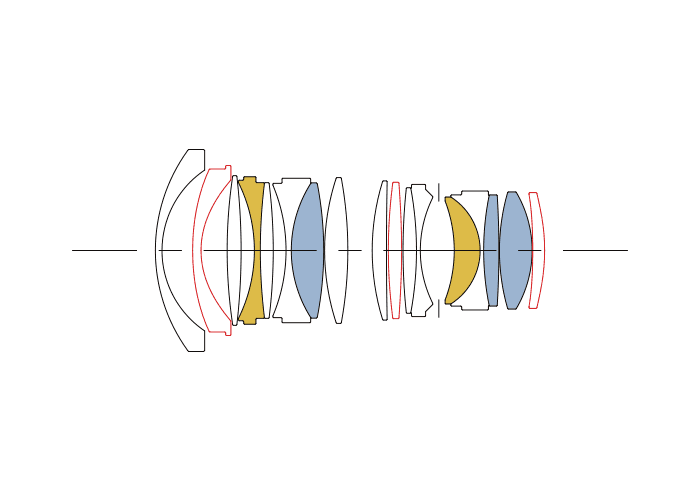

Lens construction / Specifications

Designed to meet all shooting conditions

The water- and oil-repellent coating on the front lens element, together with the dust and splash resistant structure*, ensures excellent performance even in the most challenging shooting conditions. The high-speed AF, thanks to the HSM (Hyper Sonic Motor) with an updated algorithm, captures instantaneous photography movement.

water- and oil-repellent coating

The front lens element incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.

Without Coating

With Coating

Dust and Splash Resistant Structure*

This lens features a highly effective dust and splash resistant structure* with special sealing at the mount connection, manual focus ring, and cover connection, allowing photographers to work in all types of weather.

* Although this construction allows the lens to be used in light rain, it is not the same as being waterproof.

High-speed AF

The high-speed AF, thanks to the HSM (Hyper Sonic Motor) with an updated algorithm, captures instantaneous photography movement.

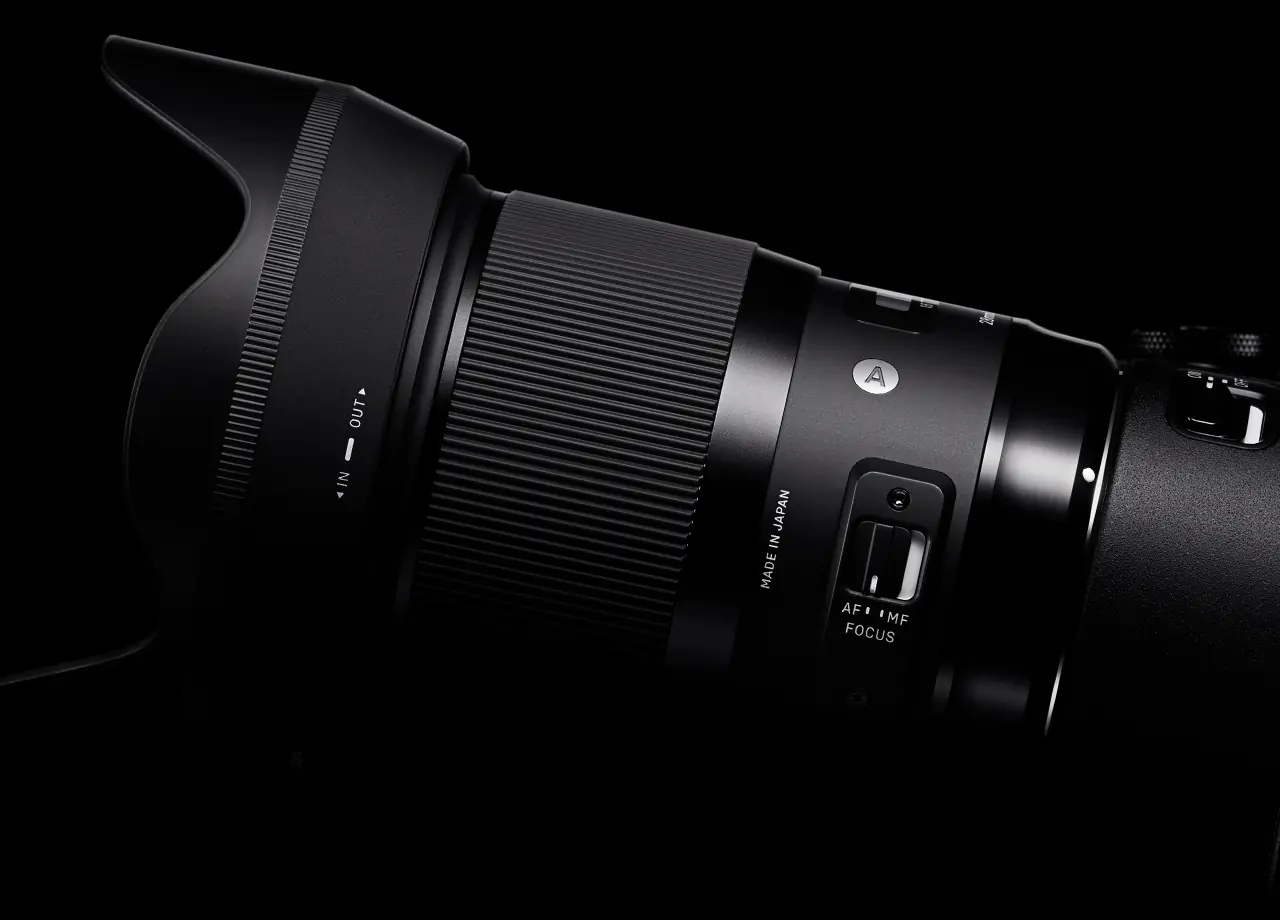

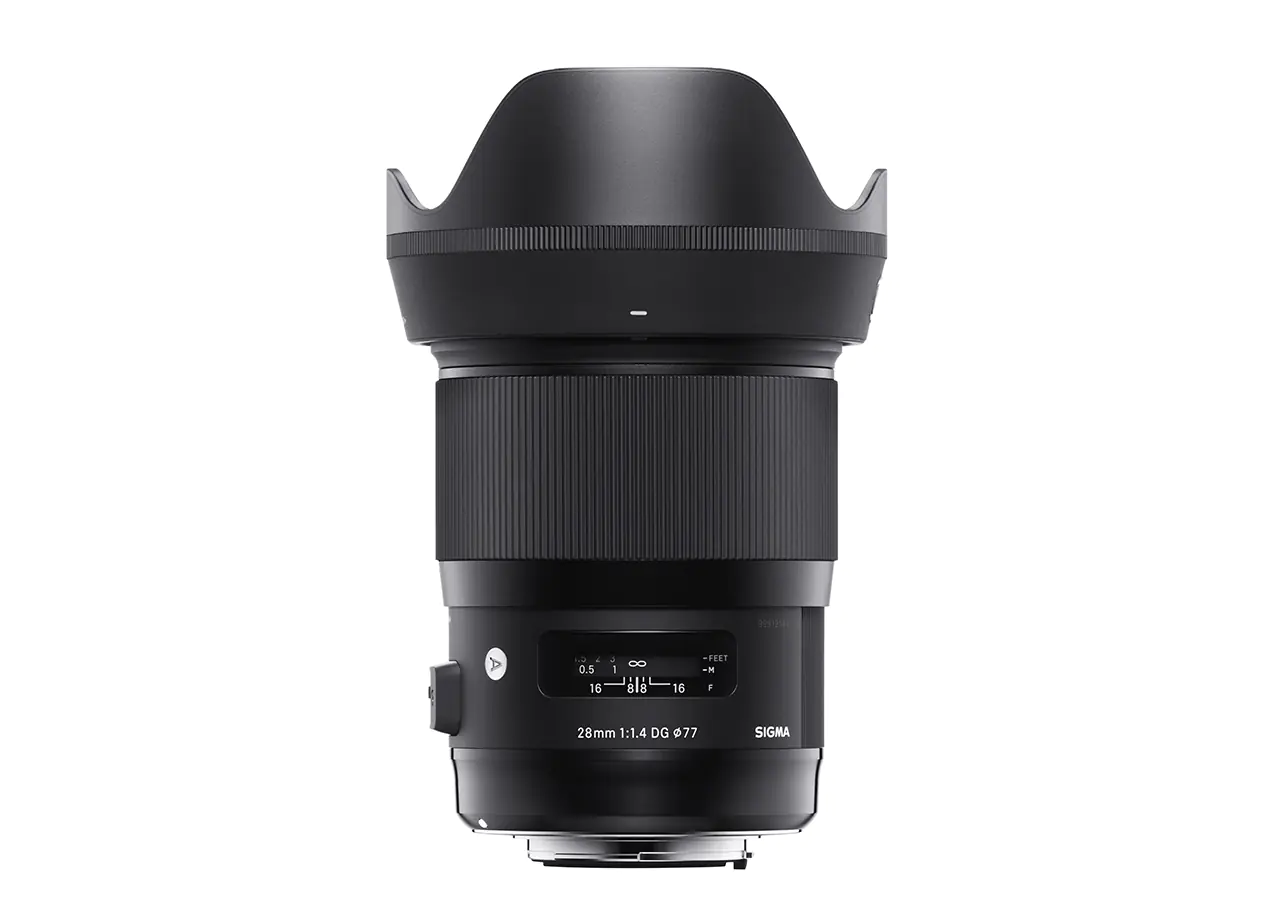

Hood with lock

Features a hood with lock to prevent dropping the hood.

SIGMA’s industry-leading wide-angle collection

With the launch of this lens, the lineup of large-diameter wide-angle prime lenses compatible with 35mm full-frame has expanded to five, ranging from 14mm to 35mm. All lenses except for 14mm have an F1.4 brightness (F1.8 for 14mm), enabling photographers to choose the angle of view that best suits them, process attractive bokeh in the background, and capture their imagination.

Compatible with Canon Lens Aberration Correction

The Canon mount version of this lens is compatible with the Canon Lens Aberration Correction function.* Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.

* Function not available on all Canon cameras. Available corrections may vary depending on the Canon camera model.

(*)Canon camera compatibility

The SGV interchangeable lens for Canon EF mount supports the "lens optical correction" installed in the following cameras.

CANON CAMERA COMPATIBILITY

EOS R5※, EOS R6※, EOS R※, EOS RP※, EOS Ra※, EOS-1D X Mark III,EOS 1DX mark Ⅱ, EOS 5Ds, EOS 5DsR, EOS 5D mark Ⅳ, EOS 6D mark Ⅱ, EOS 90D, EOS 80D, EOS 8000D（EOS Rebel T6s, EOS 760D）, EOS 9000D（EOS 77D）, EOS Kiss X8i（EOS Rebel T6i, EOS 750D）, EOS Kiss X9i（EOS Rebel T7i, EOS 800D）, EOS Kiss X9（EOS Rebel SL2, EOS 200D）, EOS Kiss X10i, EOS Kiss X10

※ For SGV interchangeable lenses released before 2017* , it is necessary that the lens firmware is updated to Ver.2.00 or later.
* The release year can be confirmed by the edition number (A017, C015, etc.) engraved on the lens barrel.

※After setting the Digital Lens Optimizer to [OFF], set the "Peripheral Illumination Correction", "Chromatic Aberration Correction", and "Distortion Correction" of the "Lens Aberration Correction" function to [ON] to achieve the appropriate corrections in accordance with the optical characteristics of each lens.

Designed to minimize flare and ghosting

From an early stage in the lens design process, flare and ghosting have been measured to establish an optical design resistant to strong incident light sources such as backlighting. Sigma’s Super Multi-Layer Coating reduces flare and ghosting to help photographers produce sharp and high contrast images even in backlit conditions.

High-precision, rugged brass bayonet mount

The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens.

Rounded diaphragm

From an early stage in the lens design process, flare and ghosting have been measured to establish an optical design resistant to strong incident light sources such as backlighting. Sigma’s Super Multi-Layer Coating reduces flare and ghosting to help photographers produce shThe 9-blade rounded diaphragm creates an attractive blur in the out-of-focus areas of the image.arp and high contrast images even in backlit conditions.

Nikon electromagnetic diaphragm mechanism included

The Nikon mount version of this lens includes an electromagnetic diaphragm mechanism that allows it to receive the appropriate signals from the camera body. This feature ensures precision diaphragm control and stable Auto Exposure (AE) performance during continuous shooting.

(*)Nikon camera compatibility

Lenses for Nikon F mount with an electromagnetic diaphragm mechanism can be used with the following cameras.

Z7Ⅱ※,Z7※,Z6Ⅱ※,Z6※,Z5※,Z50※

,D6, D5, D4S, Df, D850, D810, D810A, D780, D750, D610, D500, D7500, D7200, D7100, D5600, D5500, D5300, D5200, D5100, D5000, D3500, D3400, D3300, D3200, D3100

※Can be used with the Nikon "Mount Adapter FTZ" attached

Before using with one of the cameras listed below, please update the lens to the latest firmware version.
D4, D3X, D3S, D3, D800, D800E, D700, D600, D300S, D300, D7000

* The lens cannot be used with the cameras not listed above (including film single‐lens reflex cameras).

Compatible with full-frame Sony E-mount cameras

The version of this lens compatible with Sony E-mount mirrorless cameras contains the same optical system as for SLRs. Sigma MOUNT CONVERTER MC-11 is not required, as the lens performs the same functions as the converter, including in-camera image stabilization and in-camera lens aberration correction. In addition, the lens is compatible with Sony’s Continuous AF, which is not addressed by MOUNT CONVERTER MC-11.

* This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony

Dust and Splash Resistant Structure

This lens features a highly effective dust and splash resistant structure with special sealing at the mount connection, manual focus ring, zoom ring, and cover connection.

*Although this construction allows the lens to be used in light rain, it is not the same as being waterproof, so please prevent large amounts of water from splashing on the lens. It is often impractical to repair the internal mechanism, lens elements and electric components if they are damaged by water.

Nikon electromagnetic diaphragm mechanism

High-precision, rugged brass bayonet mount

The brass mount combines high precision with rugged construction. Its treated surfaces and enhanced strength contribute to the exceptional durability of the lens.

Water and oil repellent coating

Incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.

HSM (Hyper Sonic Motor)

The Hyper Sonic Motor (HSM) is an original SIGMA development that uses ultrasonic waves to drive the autofocus mechanism. Its extremely quiet operation helps avoid disturbing photographic subjects. High torque and speed assure rapid autofocus response. SIGMA uses two types of HSM: ring HSM and micro HSM. The Ring HSM configuration permits manual fine tuning of focus (manual override) by turning the focusing ring after autofocus is complete.

Rounded diaphragm

The polygonal shape of a conventional iris dia phragm causes out-of-focus light points to appear polygonal. A rounded diaphragm is designed to pro duce rounded out-of-focus light points when opened to near maximum aperture. This creates attractive bokeh effects in many situations, such as when pho tographing a subject against an out-of-focus surface of water from which light is being reflected.

Exclusive low-dispersion glass

The degree to which light is refracted by glass depends on the light's wavelength. This fact causes different colors of light to focus at slightly different points. The result is chromatic aberration, the color fringing that is particularly noticeable in telephoto lenses. Most chromatic aberration can be removed by combining a high-refractivity convex lens element with a low-refractivity concave element. Yet residual chromatic aberration known as "secondary spectrum" may still remain. To minimize this secondary spectrum, which can be a serious issue with conventional lenses, SIGMA lenses feature up to three types of exclusive low-dispersion glass offering superior performance: ELD (Extraordinary Low Dispersion), SLD (Special Low Dispersion) and FLD ("F" Low Dispersion). In particular, FLD glass offers ultra-low dispersion in combination with high transmittance and the anomalous dispersion characteristics of fluorite. Meticulous deployment of these types of exclusive low-dispersion glass and optimization of power distribution gives SIGMA lenses superlative image rendition undiminished by residual chromatic aberration.
