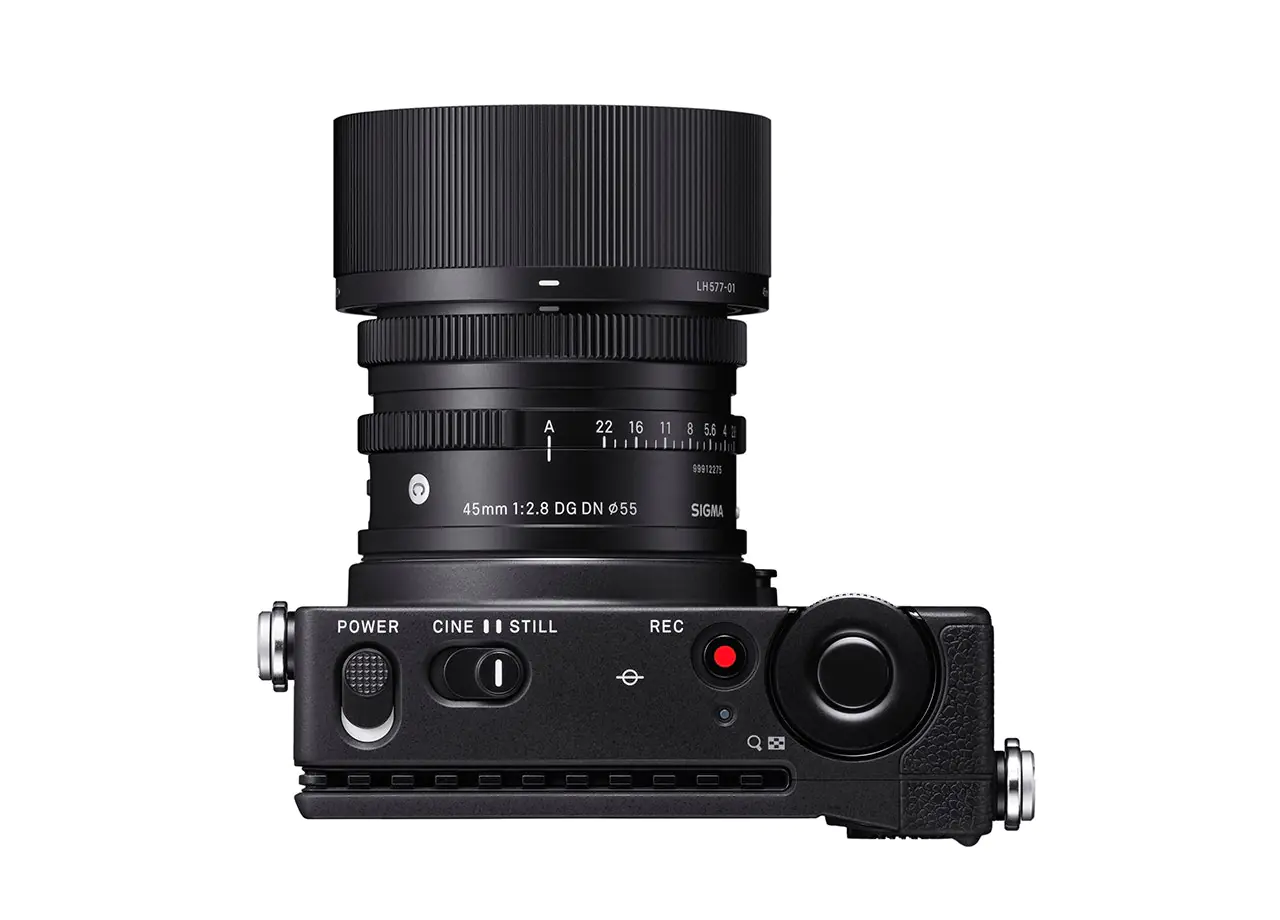

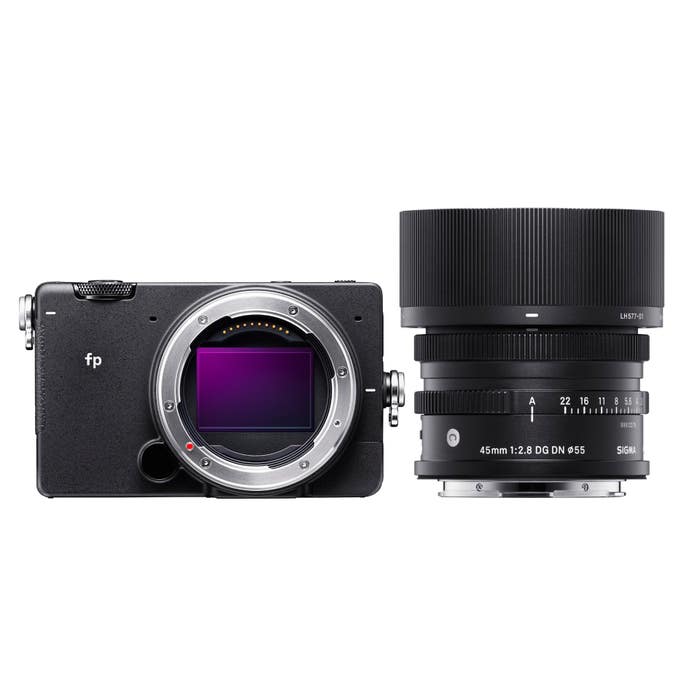

fp - Mirrorless Camera + 45MM F/2.8 DG DN (C)
SIGMA fp
• 24,6 Megapixel, 35 mm full-frame sensor (back-illuminated)
• Robust & lightweight aluminum body
• Dust- and splash-proof structure
• Easy set-up for WEB streaming and video conf. with USB-C cable
• Supports UHD 4K/24, 25 & 30 fps and 12-bit Cinema DNG
• Electronic image stabilization
• Full-time electronic shutter
• Face/Eye Detection AF
• HDR Shooting
45mm F2.8 DG DN | Contemporary
• Rugged build quality
• Beautiful bokeh and rendering
• Rounded diaphragm
• Mount with dust and splash proof structure
• Fast AF with full-time manual focus
• Designed to minimize flare and ghosting
• Compatible with Lens aberration correction
Disponibilité limitée

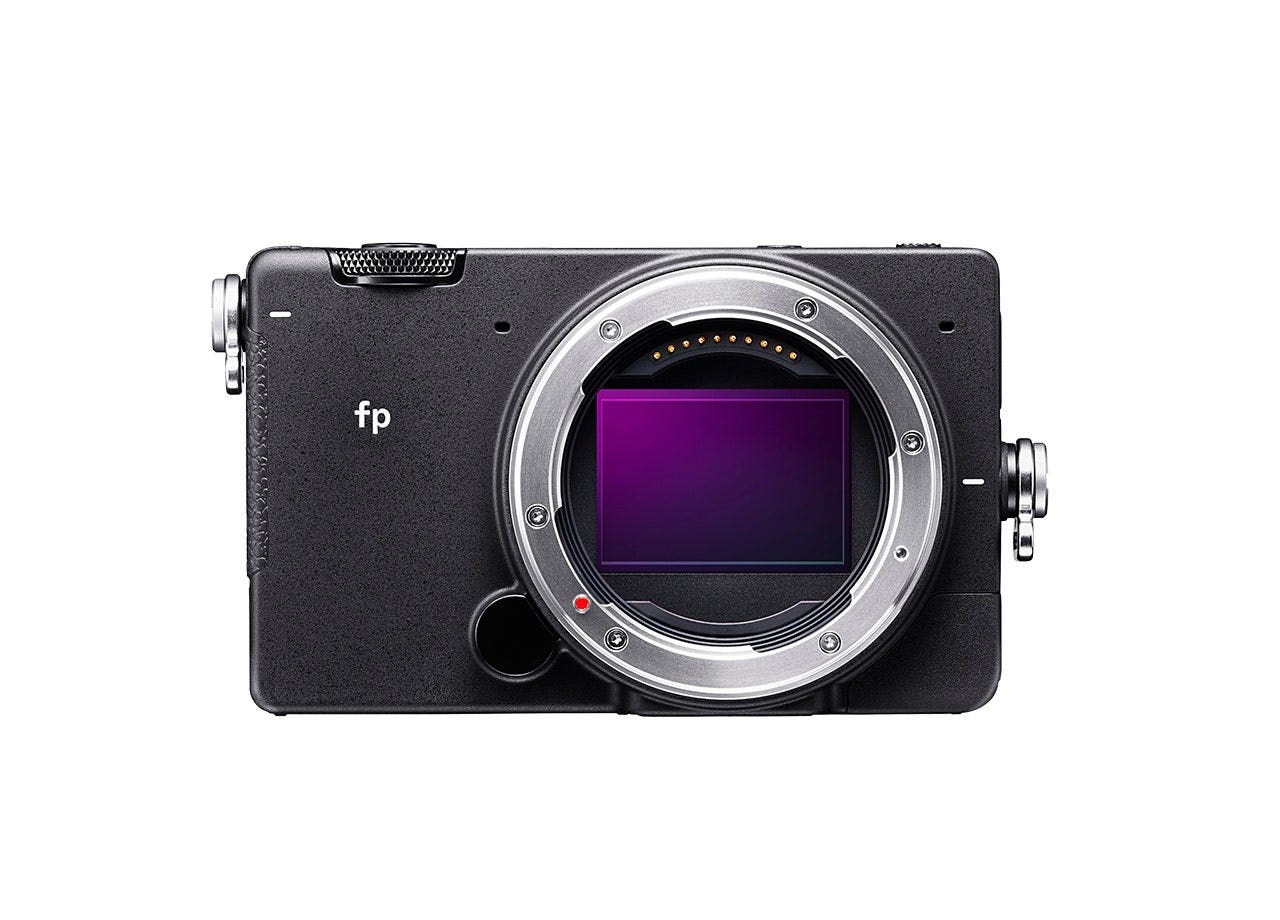

SIGMA fp - The world's smallest and lightest full-frame camera
With overall dimensions of 112.6×69.9×45.3mm and a body weight of 370g, the SIGMA fp is the world's smallest and lightest interchangeable lens camera equipped with a full-frame sensor.
SIGMA fp employs a back-illuminated 35mm full-frame image sensor with 24.6 effective megapixels and a full-time electronic shutter, enabling to shoot virtually without sound, and no camera shake due to shutter shock. Even when shooting in quick succession at a frame rate of 18 frames/sec., it eliminates the tiniest of shakes. In addition, as opposed to conventional mechanical shutters, it does not cause irregularities on the screen display in a high-speed shutter setting.
Furthermore, the absence of a mechanical shutter makes the SIGMA fp's camera structure simpler, which in turn improves its reliability.

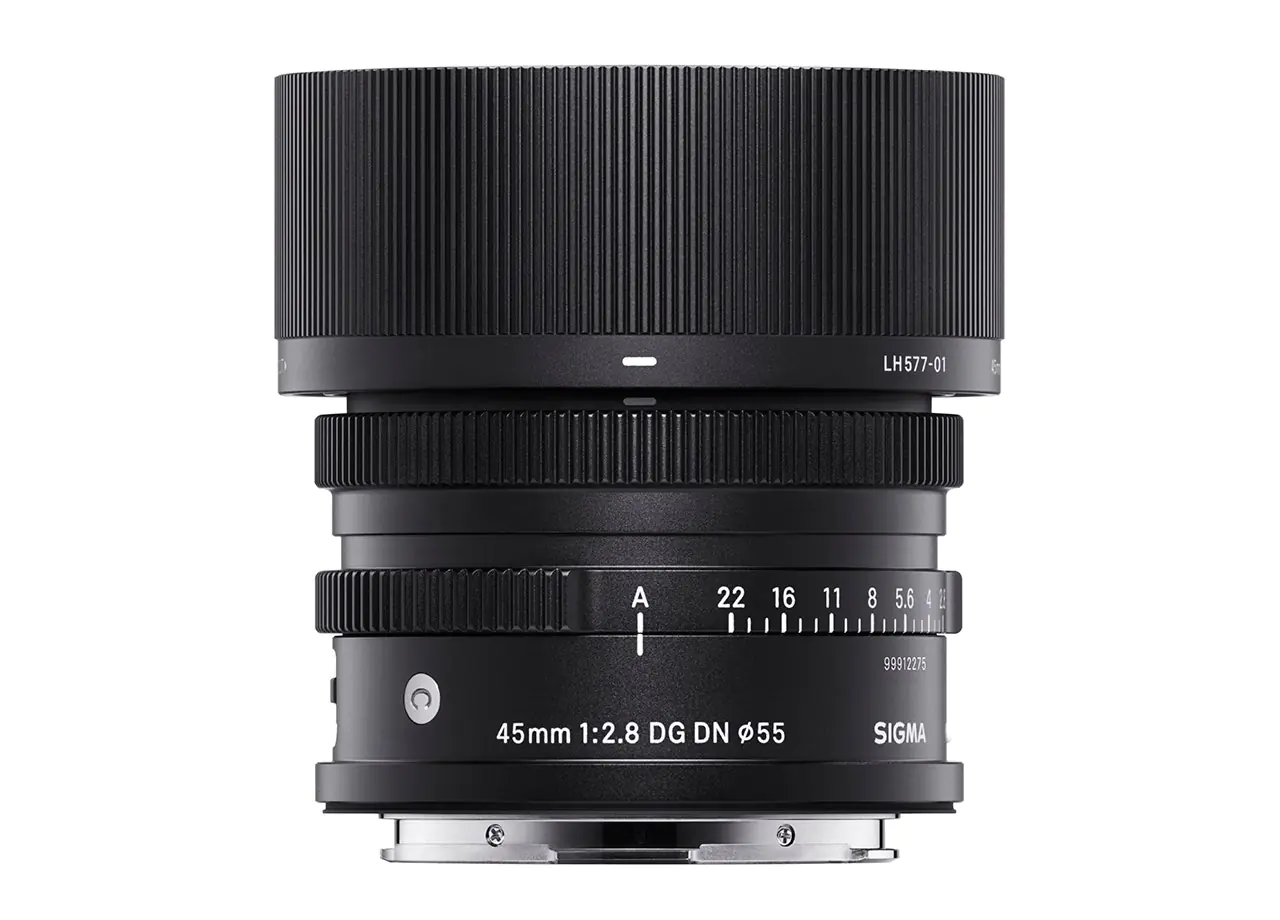

45mm F2.8 DG DN | Contemporary - Admirably balanced performance and size
Designed for combination with relatively small full-frame mirrorless cameras, this standard lens pursues easy operability as a regular prime lens by balancing its easy-to-carry size and high optical performance, thereby embodying the Contemporary line’s development concept of “pursuing optimum balance," and becoming the perfect first lens in the lineup dedicated for full-frame mirrorless cameras.
| Monture | L-mount |
|---|---|
| Format Type | Interchangeable-lens Mirrorless Type Digital Camera |
| Storage Media | SD / SDHC / SDXC memory card (UHS-Ⅱ supported) / Portable SSD (USB 3.0 connection, USB bus power supported) |
| Sensor type | 35 mm full-frame (35.9 mm x 23.9 mm) Back-illuminated Bayer CMOS sensor |
| Camera effective pixels / Total pixels | Approx. 24.6MP (6,072 x 4,056) / Approx. 25.3MP (6,104 x 4,142) |
| Sensor | Full-frame (35.9 mm x 23.9 mm) |
| Ratio d'image | 3:2 |
| Color, filter system | RGB Primary color filter |
| Still Image File Format | Lossless compression RAW (DNG) data 12/14 bit, JPEG (Exif 2.3), RAW (DNG) + JPEG:recording is possible |
| Image aspect ratio | [21:9] / [16:9] / [3:2] / [A Size (√2:1)] / [4:3] / [7:6] / [1:1] |
| File size - RAW | HIGH: 6000 x 4000 (3840 x 2560), LOW: 3008 x 2000 (1920 x 1280) *() In DC Crop Mode |
| File size - JPEG | [21:9] HIGH : 6,000 x 2,576 (3,840 x 1,648) [3:2] HIGH : 6,000 x 4,000 (3,840 x 2,560) [4:3] HIGH ：5,344 x 4,000 (3,408 x 2,560) [1:1] HIGH : 4,000×4,000 (2,560×2,560) [16:9] HIGH : 6,000 x 3,376 (3,840 x 2,160) [A Size (√2:1)] HIGH : 5,664 x 4,000 (3,616 x 2,560) [7:6] HIGH : 4,960 x 4,000 (3,184 x 2,560) |
| Color space | sRGB / Adobe RGB |
| Format audio (interne) | Linear PCM (2ch 48kHz/16bit) |
| Recording pixels / Frame rate (Internal) | 3,840 x 2,160 (UHD 4k) / 23.98p, 25p, 29.97p |
| Continuous recording time (internal) | Up to 2 hours |
| Cinema DNG recording media limits (Internal) | SD card: UHS-II UHD 8bit under 25fps, FHD 12 bit under 60fps |
| Movie format (External) | HDMI Loop out “External recorder record: ATOMOS Ninja Inferno, Blackmagic Video Assist 4K supported |
| Format audio (externe) | Linear PCM (2ch 48kHz / 16bit) |
| File size / Frame rate (External) | 4,096×2,160（DCI 4K） 12bit RAW 24fps |
| Type d'autofocus | Contrast detection system, Single AF, Continuous AF (With moving object prediction function), Manual Focus |
| AF Measurement DistanceDetecton Range / AF mode | -5EV ～18EV(F1.4:ISO100) / AUto, 49-points selection mode, Free Movement mode, Face/Eye Detection AF mode, Tracking AF mode |
| AF Lock | Half-press the shutter button, or press the AEL button (setting change required) |
| Metering System | Evaluative, Spot, Center Weighted Average |
| Metering Range | -5 ～18EV (50 mm F1.4: ISO100) |
| Still Image Shooting Mode | (P) Program AE (Program Shift is possible), (S) Shutter Speed Priority AE, (A) Aperture Priority AE, (M) Manual |
| Movie Shooting Mode | (P) Program AE, (S) Shutter Speed Priority AE, (A) Aperture Priority AE, (M) Manual |
| ISO Sensitivity | ISO 100-25600, Expanded sensitivity ISO 6, 12, 25, 50, 51200, 102400 |
| Exposure Compensation | ±5EV (in 1/3-stop increments) : ±EV at movie recording |
| AE Lock | Half-press the shutter button, or press the AEL button (setting change required) |
| Exposure Bracket | 3-frame/5-frame stage exposure 3EV (1/3 Step, Standard -> Underexposure -> Overexposure) (Sequence changeable) |
| Image Stabilization System | Electronic System |
| White balance Settings | 12 types (Auto, Auto (Lighting Source Priority), Daylight, Shade, Overcast, Incandescent, Fluorescent, Flash, Color Temperature, Custom 1, Custom 2, Custom 3) |
| Shutter Type | Electronic shutter |
| Shutter Speed | 30 - 1/8,000 sec, Bulb (5 minutes max) *Up to 1/4,000 sec when using electronic image stabilisation |
| Drive Modes | Single shooting, Continuous shooting (H: approx. 18 shots/sec, M: approx. 5 shots / sec, L: approx. 3 shots / sec), Self-timer (2 sec / 10 sec), Interval-timer |
| Maximum number of shots | HIGH: 12frame, MED: 12frame, LOW: 24frame |

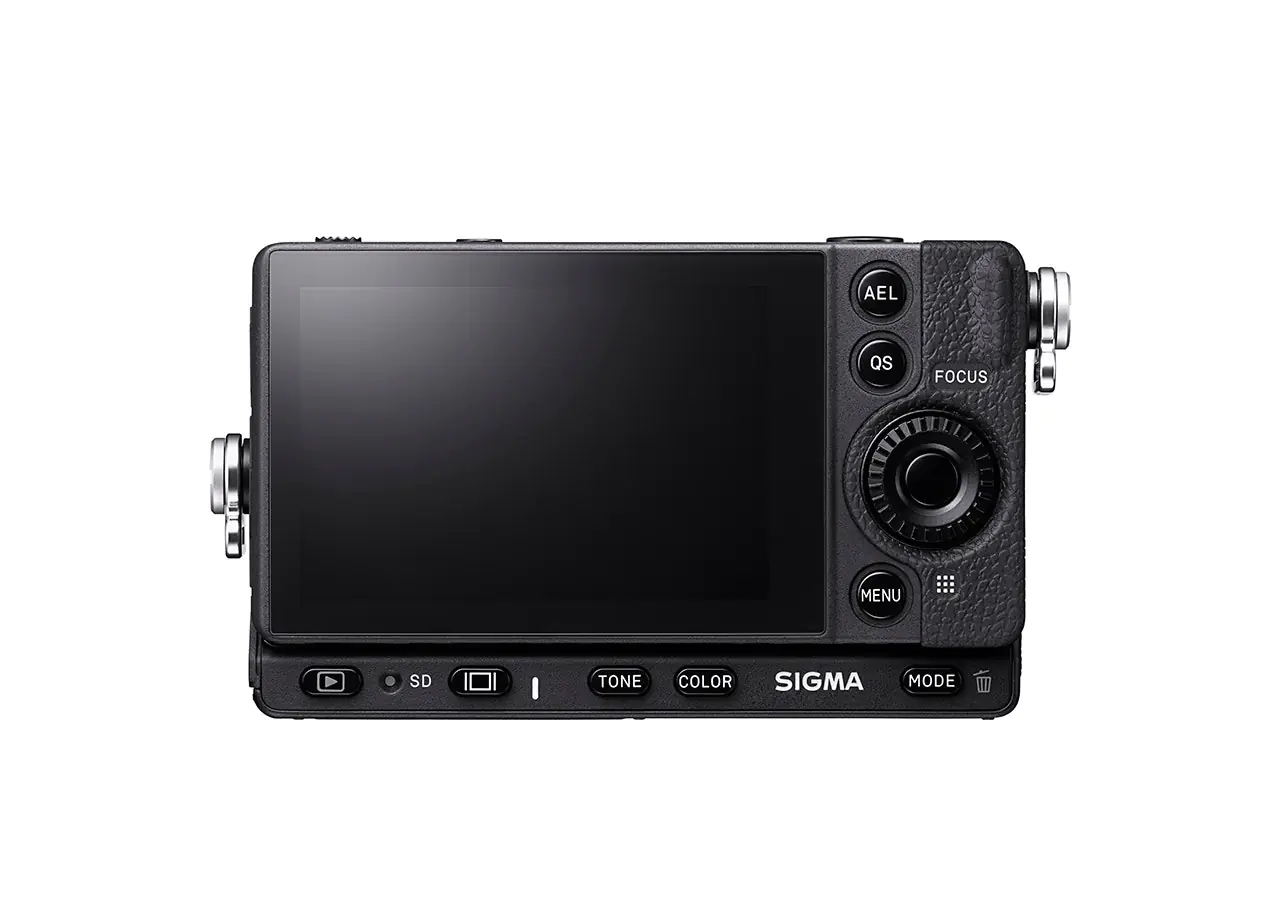

| Monitor Type / Coverage | TFT color LCD monitor Aspect Ratio 3:2, 3.15, Approx. 2,100,000 dots / Electrostatic capacitance system touch panel / Approx. 100% |
| Light Emission Mode (External flash) | S-TTL automatic light control, Manual, Wireless flash, Multi-emission Flash (when to use external flash) |
| Flash Mode (External flash) | Red-eye effect reduction / Slow synchronisation, 2nd Curtain synchronisation |
| Exposure control (External flash) | Max. ±3EV in 1/3EV-step increments |
| Flash Tuning Speed (External flash) | Max. 1/30 sec. *1/15 sec. or less at 14bit |
| External Flash Support | Available when the Hot Shoe Unit HU-11 (supplied with this product) is mounted *S-TTL, Wireless support, XContact |
| Color mode | 13 types (Standard, Vivid, Neutral, Portrait, Landscape, Cinema, Teal & Orange, Sunset Red, Forest Green, FOV Classic Blue, FOV Classic Yellow, Monochrome, Off) |
| Recording Mode | STILL Mode: FillLight / HDR shooting - CINE Mode: Still image shooting during movie shooting / HDR shooting / Director's view finder |
| Playback Mode | STILL: Mode In-camera DNG Development - CINE Mode: Cinemagraph / still image cut-out |
| Microphone int�gr� | Stereo microphone, Monaural speaker |
| Display Language | English / Japanese / Norwegian / Swedish / Danish / Finnish / German / French / Spanish / Italian / Simplified Chinese / Traditional Chinese / Korean / Russian / Dutch / Polish / Portuguese |
| USB | USB3.1 GEN1 Type C |
| HDMI | Type D (Ver.1.4) |
| Release Terminal | Also used as an external microphone terminal |
| External Microphone | ⌀ 3.5 mm stereo mini jack (Plug-in power support) |
| Headphone output | Unavailable |
| Flash-synchro Terminal | Dedicated terminal (with hot shoe unit HU-11 (supplied with this product) mounted) |
| R�sistant � la poussi�re et aux �claboussures | Yes |
| Power | Li-ion Battery Pack BP-51 *USB power supply available (when the power is turned off) |
| Still images | Approx. 280 images (at 23 ℃ according to CIPA standard) |
| Movie | continuous recording | Approx. 70 min |
| Poids (gramme) | 422 g (including battery and SD card), 370 g (Camera body only) |
| Operating Temperature | 0 ～ +40℃ |
| Operating Humidity | 86% or less |
| Accessoires | Li-ion Battery Pack BP-51, Strap, Strap Holder, USB AC Adapter UAC-11, USB Cable (A-C) SUC-11, HOT SHOE UNIT HU-11, Body Cap, Instruction Manual, Warranty, Warranty Sticker |
| Optional Accessories | Hand Grip HG-11, Large Hand Grip HG-21, LCD View Finder LVF-11, Base Plate BPL-11, Cable Release CR-41, Base Grip BG-11, DC Connector CN-21, Battery Charger BC-71, AC Adapter SAC-7P, Electronic Flash EF-630, Mount Converter MC-21 |
