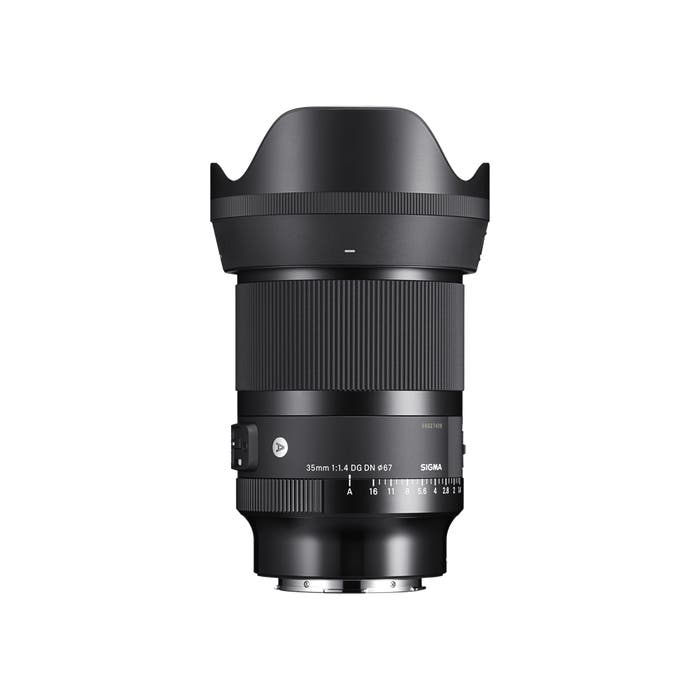

SIGMA 35mm F1.4
DG DN | Art
• The SIGMA 35mm F1.4 Art is reborn, exclusively for mirrorless cameras
• Exceptional optical performance
• Outstanding level of sharpness
• Smooth bokeh
• Ultra-fast and quiet AF in a compact body
• De-clickable and lockable aperture ring
• Customizable AFL-button
• Made in Japan
| Productlijn | Art |
|---|---|
| Youtube Videos | |
| Youtube Channel Link | https://www.youtube.com/channel/UCj0Y0mbE0gdB3Ou4zxeWeoQ |
| Instagram Widget | |
| Lensconstructie | 15 elements in 11 groups |
| Lens Type | Wide Angle |
| Sensor Size | Full Frame |
| Beeldhoek | 63.4º |
| Aantal diafragmalamellen | 11 (Rounded diaphragm) |
| Minimaal diafragma | F16 |
| Minimale scherpstelafstand | 30 cm |
| Maximale vergroting | 1:5.4 |
| Afmetingen (diameter x lengte) | Sony E-mount ⌀ 75.5 mm x 109.5 mm |
| Filtermaat | 67 mm |
| Edition number | A021 |
| Accessoires | Petal type Hood with Lock LH728-01 (included) |
| EAN | Sony E-mount 085126303655 |
Exceptional optical performance
Central to the design of the 35mm F1.4 DG DN | Art is its sophisticated optical performance, which is consistent with the development of all Art line lenses. The lens incorporates 15 elements in 11 groups. With two Special Low Dispersion (SLD) elements, an Extraordinary Low Dispersion (ELD) element, an ‘F’ Low Dispersion (FLD) element and two aspherical elements, and as well as other high-performance glass, the lens’ advanced optical construction utilizes Sigma’s state-of-the-art optical design technology, minimizing all types of aberration including axial chromatic aberration, which cannot be corrected in-camera.
In spite of having a very wide aperture of F1.4, the lens is able to control sagittal coma flare extremely well even wide open, stopping bright points of light from flaring out near the edges of the frame. This will be particularly appealing to night sky photographers.
Owing to its 11 rounded diaphragm blades, the lens displays smooth, round bokeh so that out-of-focus areas are not distracting. This makes the 35mm F1.4 DG DN | Art well-suited to portraits, supported by its ultra-sharp image quality and minimal color bleeding. It also performs very well in backlit conditions thanks to Sigma’s anti-ghosting and anti-flare technology that it has cultivated through countless simulations and real-life testing in our many years of lens development. This keeps shots high contrast and free of excessive flare even when working in difficult light.
Fast and quiet AF in a compact body
The focusing mechanism in the Sigma 35mm F1.4 DG DN | Art features a stepping motor. This motor controls a focusing lens group composed of a single, lightweight element, which means AF is responsive and quiet, and is able to keep track of moving objects very effectively. Manual focusing is smooth and precise, but with the right amount of resistance for filmmakers. Certainly, this lens has a focus mode switch on the body.
The Sigma 35mm F1.4 DG DN | Art wholly embraces the Art line concept, which is “designed with a focus on sophisticated optical performance”. This—paired with its advanced autofocus performance and the convenience of a compact size—makes for a lens that raises the standards.
Professional feature-set
On the body of the Sigma 35mm F1.4 DG DN | Art is an aperture ring that allows aperture to be controlled via the lens, or when set to Auto, using the camera. An aperture lock switch on the lens body allows the aperture ring to be locked in Auto so that it is not accidentally knocked during shooting. A big plus for filmmakers, the aperture ring can be de-clicked, allowing users to seamlessly adjust exposure. Also on the lens barrel is a focus mode switch and an AFL button, which can be customized to a desired function from within the camera menu (depending on the model). The switch is ergonomically positioned to be controlled by the thumb during use.
A petal type lens hood is included in the box, which helps reduce flare and offers the lens added protection if dropped. The hood has a lock mechanism that keeps it attached securely to the lens, and its rubberized grip makes it quick and easy to attach and remove.
On top of this impressive array of features and elegant exterior, the body of the 35mm F1.4 DG DN | Art offers an exceptional level of durability that helps it withstand long-term professional use as well as individual operating parts that give a good fit to the hand. The dust and splash resistant structure* provides sealing on buttons and along joins between constituent parts, and there is a rubber gasket around the mount. There is also a water and oil repellent coating applied to the front element ensures that photographers can rely on it in any conditions.
*Although this construction allows the lens to be used in light rain, it is not the same as being waterproof.
*1 When turned ON at the position A, the aperture ring is locked at A. When turned ON at a position other than A, it is locked within the range between the maximum to minimum apertures and will not engage at the position A.
*2 Function available on supported cameras only. Available corrections may vary depending on the camera model.
*3 Although this construction allows the lens to be used in light rain, it is not the same as being waterproof.
LENS CONSTRUCTION
GEOMETRICAL MTF Chart
DIFFRACTION MTF CHART
Inner focus system
To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.
Stepping Motor
The lens is capable of smooth, quiet and high-speed AF made possible by a stepping motor, as well as supports Face/Eye Detection AF and video AF.
Compatible with Lens Aberration Correction
Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.
*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with 'ON' or 'OFF' in the camera menu, please set all aberration correction functions to 'ON'(AUTO).
Super Multi-Layer Coating
Sigma's own Super Multi-Layer Coating suppresses flare and ghosting by preventing reflections with in the lens. All lenses in the current Sigma range feature this original technology. In digital cameras, flare and ghosting may also be caused by reflections between the image sensor and lens surfaces. Here too, Sigma's Super Multi-Layer Coating is highly ef fective, assuring images of outstanding contrast.
Water and oil repellent coating
Incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.
Aperture ring
Aperture ring, designed to help users work intuitively
Aperture ring click switch
Mounted with a de-click function for removing clicks by the aperture ring click switch, enabling seamless operations that are especially useful such as during video shooting.
Aperture ring lock switch
A ring locking system to prevent from unintended movement of the aperture ring during shooting.
Focus Mode Switch
Using this swich, it is possible to switch the focus mode between AF and MF.
Linear focus / Non-linear focus (for L-Mount only）
A focus movement method of interchangeable lenses for mirrorless cameras (DN lens) in relation to the rotational angle of the focus ring during manual focusing.
With "non-linear focus," the amount of focal point movement varies depending on the focus ring rotational speed.
With linear focus, if the focus ring rotational angle is the same, the amount of focal point movement remains the same regardless of the focus ring rotational speed.
AFL button
The AFL button can be assigned with various functions widens the range of operations available on the lens.
Dust and Splash Resistant Structure
This lens features a highly effective dust and splash resistant structure with special sealing at the mount connection, manual focus ring, zoom ring, and cover connection.
*Although this construction allows the lens to be used in light rain, it is not the same as being waterproof, so please prevent large amounts of water from splashing on the lens. It is often impractical to repair the internal mechanism, lens elements and electric components if they are damaged by water.
