Art

SIGMA 50mm F1.4
DG DN | Art

€800 83

Choose a mount to see availability

Lens construction: 14 elements in 11 groups, with 1 SLD and 3 aspherical elements
Internal focus system
Compatible with high-speed autofocus
HLA (High-response Linear Actuator) AF motor
Compatible with Lens Aberration Correction
Support for DMF and AF+MF
Compatible with AF Assist (Sony E-mount only)
Super Multi-Layer Coating
Water- and oil-repellent coating (front element)
AFL Button
Support for switching between linear and non-linear focus ring settings (L-Mount only)
Aperture Ring
Aperture Ring De-click Switch
Aperture Ring Lock Switch
Dust- and splash-resistant structure

Buy from reseller

Specifications

Eigenschappen

Construction

Technology

Ligne	Art
Formule optique	14 elements, 11 groups (1 SLD and 3 aspherical elements)
Lens Type	Standard
Sensor Size	Full Frame
Angle de vue	46.8°
Diaphragme	11 (rounded diaphragm)
Ouverture minimale	F22
Distance minimale de mise au point	25cm
Rapport de reproduction maximal	1:6.8
Weight (g)	670 gram
Diamètre de filtre	72mm
Edition number	23

The "Art F1.4" standard with uncompromising optical performance

Based on the latest optical design technology, the lens incorporates 14 elements in 11 groups, with 3 aspherical lenses and 1 SLD glass element. The lens effectively suppresses various aberrations such as astigmatism and field curvature, which cannot be corrected in-camera. Despite the large aperture of F1.4, the image formation performance on the periphery of the image has been pursued and sagittal coma flare has been minimized to the extent that the lens can withstand even challenging star and night scenes, with demanding severe point light source imaging, from wide open. In addition to clear image quality with no color blur throughout the entire image circle, the large, natural bokeh beauty of F1.4 can be fully utilized in photography.

High-speed AF for nimble and comfortable shooting

The Sigma 50mm F1.4 DG DN | Art is the first in the Art line exclusively designed for full-frame mirrorless cameras to adopt the “HLA” linear motor (High-response Linear Actuator) . In addition, by using a single double-sided aspheric lens as the focus element, the lens offers fast and quiet focusing and high tracking performance despite its large aperture. With a maximum aperture of 1.4 and a high-performance AF system, the lens can be used in a variety of situations, including shooting in dark places, shooting moving subjects, snapshots, and even video.

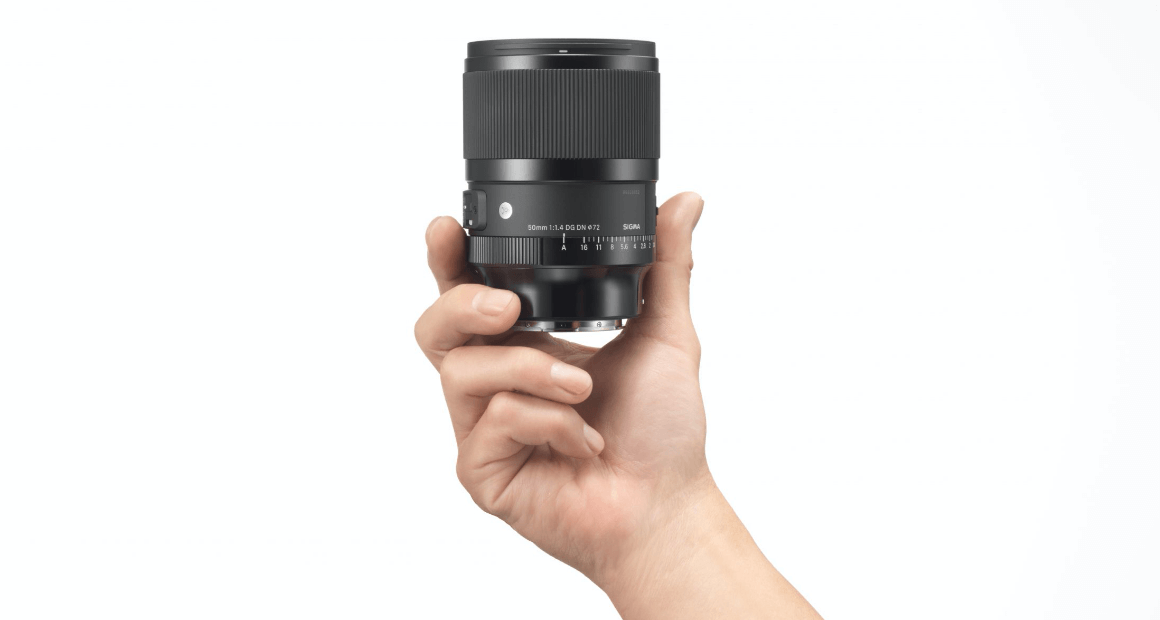

High performance, yet slim and compact

The development of the Sigma 50mm F1.4 DG DN | Art was focused on slimming down the lens barrel by reducing the weight of a focus lens and optimizing the lens unit layout, to pursue the “optimum size” for mirrorless systems without compromising the “maximum emphasis on optical performance” concept of Sigma’s Art line. This lens has succeeded in achieving both top-class performance, and the size required for a light and mobile photographic tool.

Full range of functions and high build quality

The lens barrel is equipped with a Focus Mode switch, an Aperture ring click switch to turn the click on and off, an Aperture ring lock switch to prevent unintended operation, and an AFL button to assign any function from the camera. These features are designed for intuitive operation during shooting.

Dust and Splash Resistant Structure forsecurity in various shooting situations

The lens is equipped with a dust and splash resistant structure, and the front element of the lens is applied with a water and oil repellent coating, making it suitable for a wide range of shooting environments. The lens is compact, lightweight, and easy to use, while at the same time ensuring high build quality assured by the Aizu factory’s reliable processing technology of “Made in Japan”.

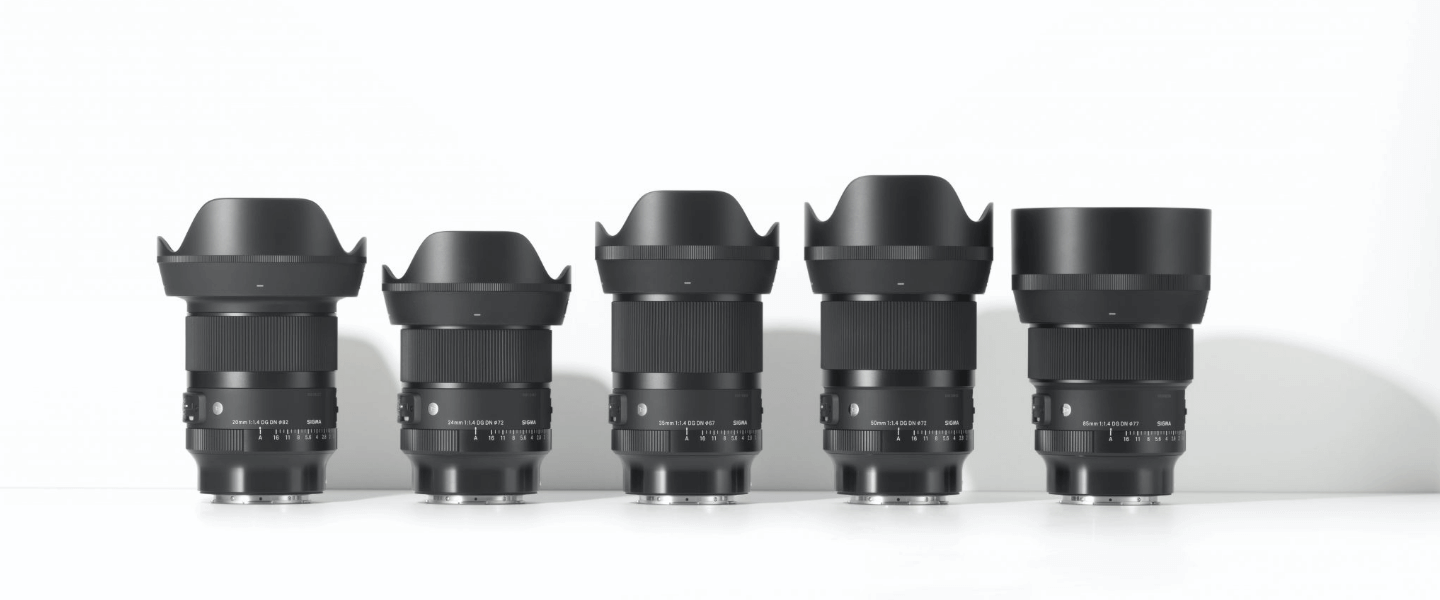

DG DN "Art F1.4" series lineup includes 5 lenses from 20mm to 85mm

Inner focus system

To increase stability, this lens configuration uses movable internal lens elements that adjust focus without changing the length of the lens barrel.

HLA (High-response Linear Actuator)

Matching the optical characteristics of the lens, this function performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.

*Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
*On cameras where lens aberration correction is controlled with 'ON' or 'OFF' in the camera menu, please set all aberration correction functions to 'ON'(AUTO).

Super Multi-Layer Coating

SIGMA's own Super Multi-Layer Coating suppresses flare and ghosting by preventing reflections with in the lens. All lenses in the current SIGMA range feature this original technology. In digital cameras, flare and ghosting may also be caused by reflections between the image sensor and lens surfaces. Here too, SIGMA's Super Multi-Layer Coating is highly ef fective, assuring images of outstanding contrast.

Water and oil repellent coating

Incorporates a water and oil-repellent coating that allows water to be wiped away easily and prevents oil and fat from sticking to the surface, even in challenging shooting conditions. At the same time, the maintenance of the lens surface becomes easier.

AFL button

the AFL button can be assigned with various functions widens the range of operations available on the lens.

Focus Mode Switch

Using this swich, it is possible to switch the focus mode between AF and MF.

Aperture ring

Aperture ring, designed to help users work intuitively

Aperture ring click switch

Mounted with a de-click function for removing clicks by the aperture ring click switch, enabling seamless operations that are especially useful such as during video shooting.

Aperture ring lock switch

A ring lock system to prevent from unintended movement of the aperture ring during shooting.

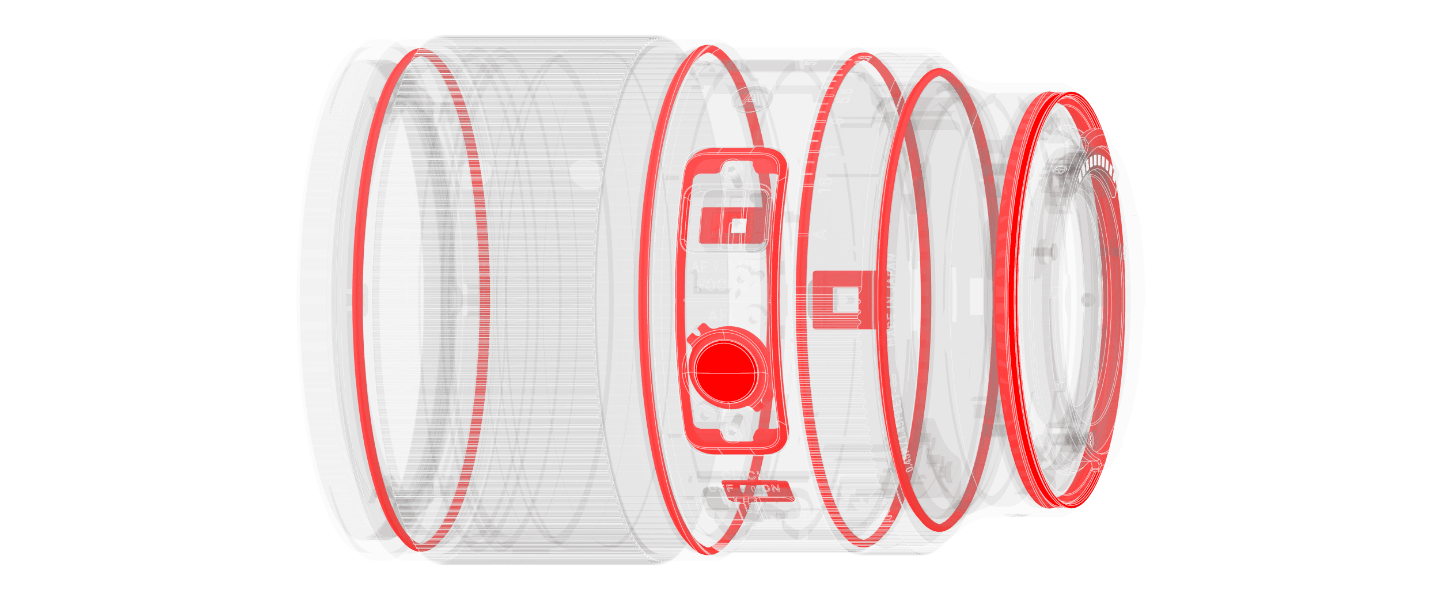

Dust and Splash Resistant Structure

This lens features a highly effective dust and splash resistant structure with special sealing at the mount connection, manual focus ring, zoom ring, and cover connection.

*Although this construction allows the lens to be used in light rain, it is not the same as being waterproof, so please prevent large amounts of water from splashing on the lens. It is often impractical to repair the internal mechanism, lens elements and electric components if they are damaged by water.

Lens construction: 14 elements in 11 groups (1 SLD and 3 aspherical lenses)

Compatible with high-speed autofocus

Support for DMF, AF + MF

Compatible with AF assist (Sony E-mount only)

Support for switching between linear and non-linear focus ring settings (L-Mount only)

Petal type LENS HOOD LH782-02

Compatible with SIGMA USB DOCK UD-11 (sold separately; L-Mount only)

Designed to minimize flare and ghosting

Every single lens undergoes SIGMA’s proprietary MTF measuring system

11-blade rounded diaphragm

High-precision, durable brass bayonet mount
